vLLM Worker 架构深度解析
本文档深入分析 vLLM V1 的 Worker 架构，包括 Worker 类层次结构、GPUModelRunner 执行流程、InputBatch 持久化批次优化和完整执行示例。
目录
Worker 概述
什么是 Worker？
Worker 是 vLLM 中负责实际模型执行的组件。每个 Worker 运行在一个设备（GPU/CPU/XPU）上，负责：
- 设备初始化：设置 CUDA 设备、分布式环境
- 模型加载：将模型权重加载到 GPU 内存
- KV Cache 管理：分配和管理 KV 缓存块
- 模型执行：运行前向传播和采样
- 内存管理：支持休眠模式等高级内存优化
关键特性
| 特性 | 说明 | |------|------| | 分布式执行 | 支持 TP/PP/DP 多种并行模式 | | CUDAGraph | 减少 kernel 启动开销 | | 持久化批次 | 增量更新批次状态 | | Sleep Mode | 动态释放模型权重 | | 异步调度 | 重叠计算和通信 |
Worker 类层次结构
架构概览

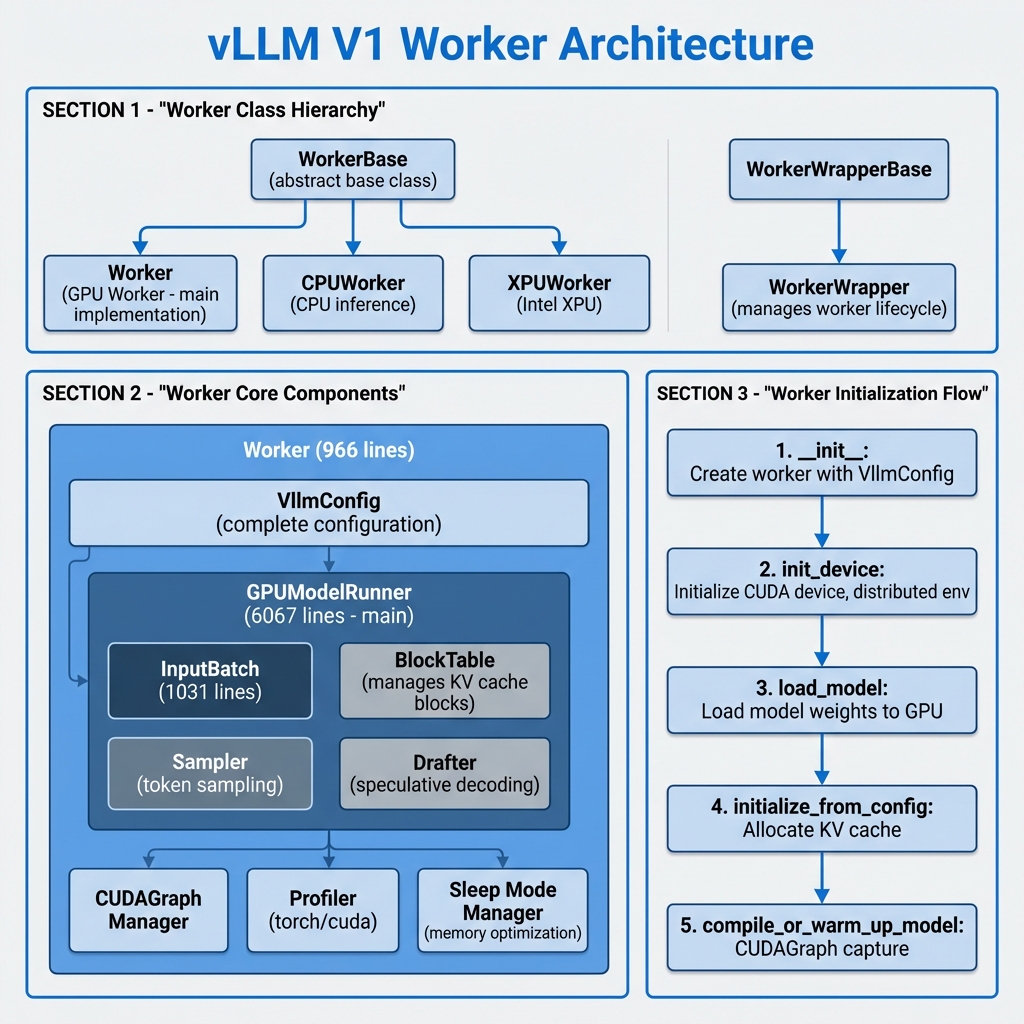

图1: vLLM V1 Worker 架构图 - 展示类层次结构、核心组件和初始化流程
类继承关系
vllm/v1/worker/
├── worker_base.py # WorkerBase 抽象基类
├── gpu_worker.py # Worker GPU 实现 (966行)
├── cpu_worker.py # CPUWorker 实现
├── xpu_worker.py # XPUWorker 实现
├── gpu_model_runner.py # GPUModelRunner (6067行)
├── gpu_input_batch.py # InputBatch 实现 (1031行)
├── block_table.py # BlockTable 块表管理
└── gpu/ # GPU 子模块
├── model_runner.py # GPUModelRunner V2
├── input_batch.py
└── ...
WorkerBase 抽象基类
class WorkerBase:
"""Worker interface for different hardware implementations."""
def __init__(
self,
vllm_config: VllmConfig,
local_rank: int,
rank: int,
distributed_init_method: str,
is_driver_worker: bool = False,
) -> None:
# 核心配置
self.vllm_config = vllm_config
self.model_config = vllm_config.model_config
self.cache_config = vllm_config.cache_config
self.parallel_config = vllm_config.parallel_config
self.scheduler_config = vllm_config.scheduler_config
# 设备状态
self.local_rank = local_rank
self.rank = rank
self.device: torch.device | None = None
self.model_runner: nn.Module | None = None
# 抽象方法
def init_device(self) -> None: ...
def load_model(self) -> None: ...
def execute_model(self, scheduler_output) -> ModelRunnerOutput | None: ...
def sample_tokens(self, grammar_output) -> ModelRunnerOutput: ...
def get_kv_cache_spec(self) -> dict[str, KVCacheSpec]: ...
Worker (GPU 实现)
class Worker(WorkerBase):
"""A GPU worker class for vLLM V1."""
def __init__(
self,
vllm_config: VllmConfig,
local_rank: int,
rank: int,
distributed_init_method: str,
is_driver_worker: bool = False,
):
super().__init__(...)
# 精度设置
precision = envs.VLLM_FLOAT32_MATMUL_PRECISION
torch.set_float32_matmul_precision(precision)
# 休眠模式支持
self._sleep_saved_buffers: dict[str, torch.Tensor] = {}
# Profiler
self.profiler: TorchProfilerWrapper | CudaProfilerWrapper | None
# Model Runner 版本选择
self.use_v2_model_runner = envs.VLLM_USE_V2_MODEL_RUNNER
WorkerWrapperBase
class WorkerWrapperBase:
"""Manages worker lifecycle for distributed execution."""
def __init__(
self,
rpc_rank: int = 0,
global_rank: int | None = None,
) -> None:
self.rpc_rank = rpc_rank
self.global_rank = global_rank
self.worker: WorkerBase
self.vllm_config: VllmConfig
def init_worker(self, all_kwargs: list[dict[str, Any]]) -> None:
"""Initialize the actual worker instance."""
kwargs = all_kwargs[self.rpc_rank]
vllm_config = kwargs.get("vllm_config")
# 加载插件
load_general_plugins()
# 动态加载 Worker 类
worker_class = resolve_obj_by_qualname(
parallel_config.worker_cls
)
# 创建 Worker 实例
self.worker = worker_class(**kwargs)
def execute_model(self, scheduler_output) -> ModelRunnerOutput | None:
"""Execute model with multimodal cache handling."""
self._apply_mm_cache(scheduler_output)
return self.worker.execute_model(scheduler_output)
GPUModelRunner 详解
核心架构
GPUModelRunner 是 vLLM 中最复杂的组件之一（6067行代码），负责：
- 输入准备：构建模型输入张量
- 模型执行：运行 Transformer 前向传播
- KV Cache 管理：更新注意力缓存
- 采样：根据 logits 生成 token
- CUDAGraph：优化执行性能
初始化
class GPUModelRunner(
KVConnectorModelRunnerMixin,
ECConnectorModelRunnerMixin,
LoRAModelRunnerMixin,
):
def __init__(
self,
vllm_config: VllmConfig,
device: torch.device,
):
# 配置
self.vllm_config = vllm_config
self.model_config = vllm_config.model_config
self.device = device
# 关键限制
self.max_num_reqs = scheduler_config.max_num_seqs
self.max_num_tokens = scheduler_config.max_num_batched_tokens
self.max_model_len = model_config.max_model_len
# 持久化批次
self.input_batch = InputBatch(
max_num_reqs=self.max_num_reqs,
max_model_len=self.max_model_len,
max_num_batched_tokens=self.max_num_tokens,
device=self.device,
vocab_size=self.model_config.get_vocab_size(),
...
)
# 请求状态缓存
self.requests: dict[str, CachedRequestState] = {}
# 采样器
self.sampler = Sampler(logprobs_mode=model_config.logprobs_mode)
# 投机解码支持
if self.speculative_config:
self.drafter: NgramProposer | EagleProposer | ...
self.rejection_sampler = RejectionSampler(self.sampler)
# GPU 常驻缓冲区
self.input_ids = self._make_buffer(self.max_num_tokens, dtype=torch.int32)
self.positions = self._make_buffer(self.max_num_tokens, dtype=torch.int64)
self.seq_lens = self._make_buffer(self.max_num_reqs, dtype=torch.int32)
# CUDAGraph 调度器
self.cudagraph_dispatcher = CudagraphDispatcher(self.vllm_config)
CachedRequestState
每个请求在 ModelRunner 中维护缓存状态：
@dataclass
class CachedRequestState:
req_id: str
prompt_token_ids: list[int] | None
mm_features: list[MultiModalFeatureSpec]
sampling_params: SamplingParams | None
generator: torch.Generator | None
block_ids: tuple[list[int], ...]
num_computed_tokens: int
output_token_ids: list[int]
# M-RoPE 位置（如 Qwen2-VL）
mrope_positions: torch.Tensor | None = None
mrope_position_delta: int | None = None
# LoRA
lora_request: LoRARequest | None = None
prompt_embeds: torch.Tensor | None = None
@property
def num_tokens(self) -> int:
return self.num_prompt_tokens + len(self.output_token_ids)
InputBatch 持久化批次
核心概念

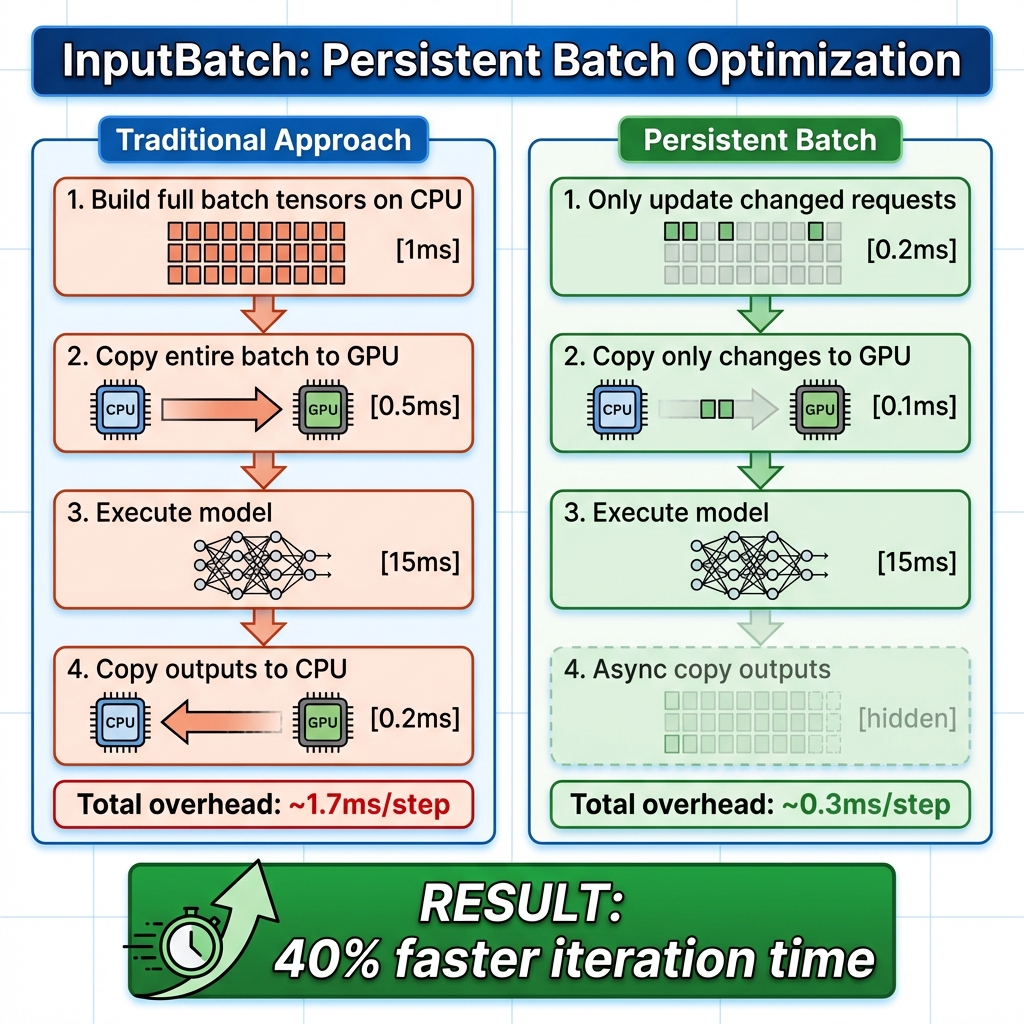

图3: InputBatch 持久化批次优化 - 对比传统方式和增量更新方式的性能差异
持久化批次优化 是 vLLM V1 的关键性能优化。传统做法是每步重新构建完整批次，而持久化批次只进行增量更新。
传统方式 (每步):
┌────────────────────────────────────────────────┐
│ 1. 从头构建批次张量 (CPU) [~1ms] │
│ 2. 复制整个批次到 GPU [~0.5ms] │
│ 3. 执行模型 [~15ms] │
│ 4. 复制输出到 CPU [~0.2ms] │
└────────────────────────────────────────────────┘
持久化批次 (增量更新):
┌────────────────────────────────────────────────┐
│ 1. 增量更新变化的部分 (CPU) [~0.2ms] │
│ 2. 只复制变化的数据到 GPU [~0.1ms] │
│ 3. 执行模型 [~15ms] │
│ 4. 异步复制输出到 CPU [~0ms 隐藏] │
└────────────────────────────────────────────────┘
收益：~40% 迭代时间减少
InputBatch 数据结构
class InputBatch:
def __init__(
self,
max_num_reqs: int,
max_model_len: int,
max_num_batched_tokens: int,
device: torch.device,
pin_memory: bool,
vocab_size: int,
block_sizes: list[int],
...
):
# ========== 请求管理 ==========
self._req_ids: list[str | None] = []
self.req_id_to_index: dict[str, int] = {}
# ========== Token 数据 (CPU) ==========
# [max_reqs, max_model_len] - 存储所有 token ID
self.token_ids_cpu = torch.zeros(
(max_num_reqs, max_model_len),
dtype=torch.int32, device="cpu"
).numpy()
# 标记哪些位置是真实 token（非 embedding）
self.is_token_ids = torch.zeros(
(max_num_reqs, max_model_len), dtype=bool
).numpy()
# 每个请求的 token 数量
self.num_tokens_no_spec = np.zeros(max_num_reqs, dtype=np.int32)
self.num_prompt_tokens = np.zeros(max_num_reqs, dtype=np.int32)
self.num_computed_tokens_cpu = np.zeros(max_num_reqs, dtype=np.int32)
# ========== Block Table ==========
self.block_table = MultiGroupBlockTable(
max_num_reqs=max_num_reqs,
max_model_len=max_model_len,
block_sizes=block_sizes,
...
)
# ========== 采样参数 (CPU + GPU) ==========
# CPU 端用于更新，GPU 端用于执行
self.temperature = torch.empty(max_num_reqs, dtype=torch.float32, device=device)
self.temperature_cpu = torch.empty(max_num_reqs, dtype=torch.float32).numpy()
self.top_p = torch.empty(max_num_reqs, dtype=torch.float32, device=device)
self.top_k = torch.empty(max_num_reqs, dtype=torch.int32, device=device)
# 惩罚参数
self.frequency_penalties = torch.empty(max_num_reqs, dtype=torch.float, device=device)
self.presence_penalties = torch.empty(max_num_reqs, dtype=torch.float, device=device)
self.repetition_penalties = torch.empty(max_num_reqs, dtype=torch.float, device=device)
# ========== 请求集合 (追踪) ==========
self.greedy_reqs: set[str] = set()
self.random_reqs: set[str] = set()
self.top_p_reqs: set[str] = set()
self.top_k_reqs: set[str] = set()
# ========== 随机数生成器 ==========
self.generators: dict[int, torch.Generator] = {}
批次操作
add_request
def add_request(self, request: CachedRequestState) -> int:
"""添加请求到批次"""
req_index = self._register_add_request(request)
req_id = request.req_id
# 更新请求 ID 列表
if req_index == len(self._req_ids):
self._req_ids.append(req_id)
else:
self._req_ids[req_index] = req_id
self.req_id_to_index[req_id] = req_index
# 复制 token IDs
num_prompt_tokens = len(request.prompt_token_ids)
self.num_prompt_tokens[req_index] = num_prompt_tokens
self.token_ids_cpu[req_index, :num_prompt_tokens] = request.prompt_token_ids
# 设置采样参数
sampling_params = request.sampling_params
if sampling_params.sampling_type == SamplingType.GREEDY:
self.temperature_cpu[req_index] = 0.0
self.greedy_reqs.add(req_id)
else:
self.temperature_cpu[req_index] = sampling_params.temperature
self.random_reqs.add(req_id)
# 添加到 block table
self.block_table.add_row(request.block_ids, req_index)
return req_index
remove_request
def remove_request(self, req_id: str) -> int | None:
"""从批次中移除请求（延迟清理）"""
req_index = self.req_id_to_index.pop(req_id, None)
if req_index is None:
return None
# 标记为待移除
self.batch_update_builder.removed_append(req_index)
self._req_ids[req_index] = None
# 清理追踪集合
self.greedy_reqs.discard(req_id)
self.random_reqs.discard(req_id)
self.generators.pop(req_index, None)
return req_index
condense
def condense(self) -> None:
"""压缩批次，填补空洞"""
num_reqs = self.num_reqs
empty_req_indices = self.batch_update_builder.removed
if not empty_req_indices:
return
if num_reqs == 0:
self._req_ids.clear()
return
# 将末尾的活跃请求移动到空洞位置
last_req_index = num_reqs + len(empty_req_indices) - 1
while empty_req_indices:
# 找到最大的非空索引
while last_req_index in empty_req_indices:
last_req_index -= 1
# 找到最小的空洞索引
empty_index = self.batch_update_builder.peek_removed()
if empty_index >= last_req_index:
break
# 移动请求
self.batch_update_builder.pop_removed()
req_id = self._req_ids[last_req_index]
self._req_ids[empty_index] = req_id
self._req_ids[last_req_index] = None
self.req_id_to_index[req_id] = empty_index
# 复制数据
num_tokens = self.num_tokens_no_spec[last_req_index]
self.token_ids_cpu[empty_index, :num_tokens] = (
self.token_ids_cpu[last_req_index, :num_tokens]
)
self.block_table.move_row(last_req_index, empty_index)
last_req_index -= 1
# 裁剪列表
del self._req_ids[num_reqs:]
执行流程详解
execute_model 主流程

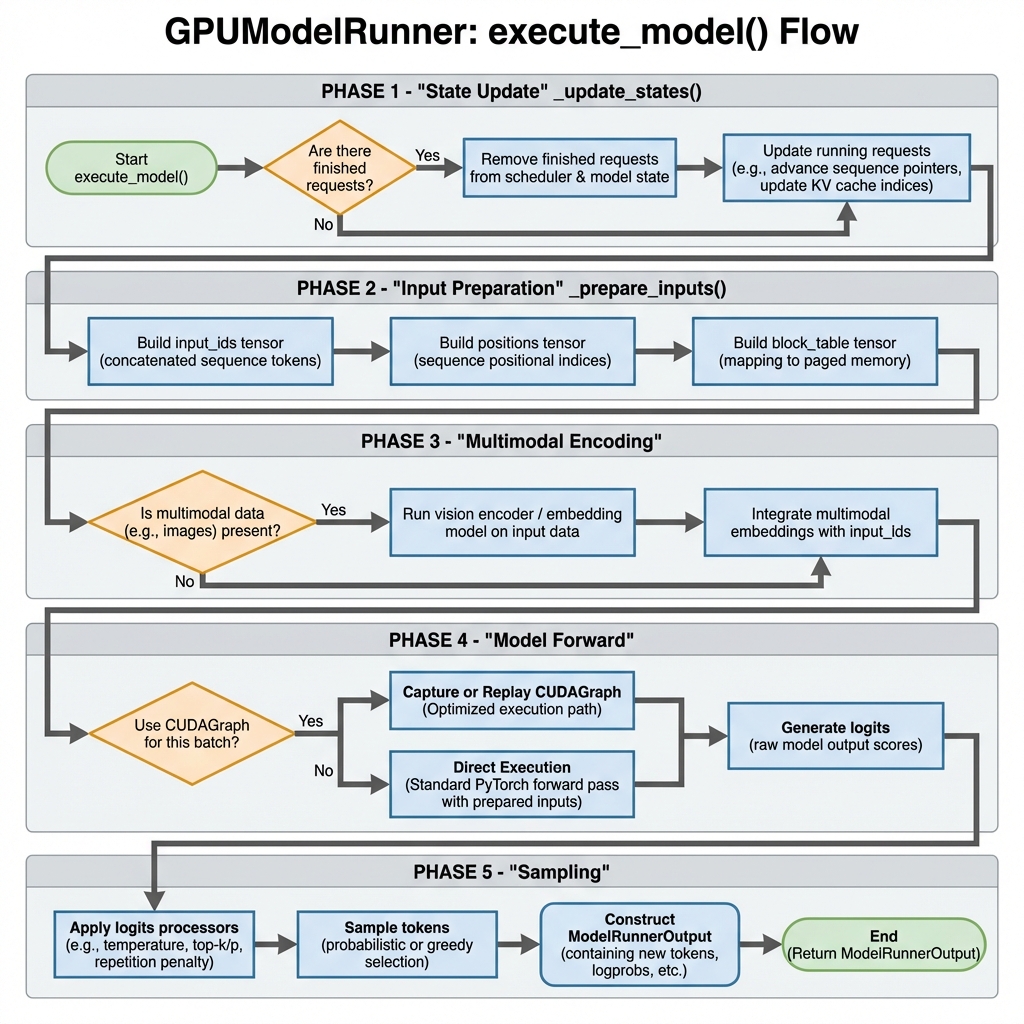

图2: GPUModelRunner execute_model() 执行流程 - 从状态更新到采样的完整流程
def execute_model(
self, scheduler_output: SchedulerOutput
) -> ModelRunnerOutput | AsyncModelRunnerOutput | None:
"""主执行入口"""
# Phase 1: 状态更新
self._update_states(scheduler_output)
# Phase 2: 输入准备
num_tokens = scheduler_output.total_num_scheduled_tokens
attn_metadata, logits_indices = self._prepare_inputs(scheduler_output)
# Phase 3: 多模态编码 (如果需要)
if self.supports_mm_inputs:
self._execute_mm_encoder(scheduler_output)
# Phase 4: CUDAGraph 调度
use_cudagraph, batch_desc = self.cudagraph_dispatcher.dispatch(num_tokens)
# Phase 5: 模型前向
with set_forward_context(attn_metadata, self.vllm_config, ...):
if isinstance(use_cudagraph, torch.cuda.CUDAGraph):
# 使用 CUDAGraph
hidden_states = self._cudagraph_replay(use_cudagraph, batch_desc)
else:
# 直接执行
hidden_states = self.model(
input_ids=self.input_ids.gpu[:num_tokens],
positions=self.positions.gpu[:num_tokens],
kv_caches=self.kv_caches,
attn_metadata=attn_metadata,
)
# Phase 6: 采样 (最后一个 PP rank)
if get_pp_group().is_last_rank:
# 计算 logits
logits = self.model.compute_logits(hidden_states, None)
# 采样
return self._execute_sampler(
logits=logits,
scheduler_output=scheduler_output,
logits_indices=logits_indices,
)
else:
# 中间 PP rank, 返回 intermediate tensors
return IntermediateTensors({"hidden_states": hidden_states})
_update_states 状态更新
def _update_states(self, scheduler_output: SchedulerOutput) -> None:
"""更新缓存状态和持久化批次"""
# Step 1: 移除已完成的请求
for req_id in scheduler_output.finished_req_ids:
self.requests.pop(req_id, None)
self.input_batch.remove_request(req_id)
# Step 2: 释放编码器缓存
for mm_hash in scheduler_output.free_encoder_mm_hashes:
self.encoder_cache.pop(mm_hash, None)
# Step 3: 移除未调度的请求（抢占的请求保留缓存状态）
scheduled_req_ids = scheduler_output.num_scheduled_tokens.keys()
cached_req_ids = self.input_batch.req_id_to_index.keys()
unscheduled_req_ids = cached_req_ids - scheduled_req_ids
for req_id in unscheduled_req_ids:
self.input_batch.remove_request(req_id)
# Step 4: 添加新请求
for new_req_data in scheduler_output.scheduled_new_reqs:
req_state = CachedRequestState(
req_id=new_req_data.req_id,
prompt_token_ids=new_req_data.prompt_token_ids,
sampling_params=new_req_data.sampling_params,
...
)
self.requests[req_id] = req_state
self.input_batch.add_request(req_state)
# Step 5: 更新运行中的请求
for i, req_id in enumerate(scheduler_output.scheduled_cached_reqs.req_ids):
req_state = self.requests[req_id]
num_computed_tokens = scheduler_output.scheduled_cached_reqs.num_computed_tokens[i]
new_block_ids = scheduler_output.scheduled_cached_reqs.new_block_ids[i]
req_state.num_computed_tokens = num_computed_tokens
if new_block_ids is not None:
for block_ids, new_ids in zip(req_state.block_ids, new_block_ids):
block_ids.extend(new_ids)
self.input_batch.block_table.append_row(new_block_ids, req_index)
# Step 6: 压缩和刷新
self.input_batch.condense()
self._may_reorder_batch(scheduler_output)
self.input_batch.refresh_metadata()
_prepare_inputs 输入准备
def _prepare_inputs(
self, scheduler_output: SchedulerOutput
) -> tuple[AttentionMetadata, torch.Tensor]:
"""准备模型输入张量"""
num_reqs = self.input_batch.num_reqs
num_tokens = scheduler_output.total_num_scheduled_tokens
# Step 1: 填充 input_ids
token_indices = []
for i, req_id in enumerate(self.input_batch.req_ids):
num_scheduled = scheduler_output.num_scheduled_tokens[req_id]
start = self.input_batch.num_computed_tokens_cpu[i]
end = start + num_scheduled
# 添加 token 索引
token_indices.extend(range(start, end))
# 复制到 GPU
self.input_ids.gpu[:num_tokens].copy_(
torch.tensor(token_indices, device=self.device)
)
# Step 2: 填充 positions
positions = []
for i, req_id in enumerate(self.input_batch.req_ids):
num_scheduled = scheduler_output.num_scheduled_tokens[req_id]
start = self.input_batch.num_computed_tokens_cpu[i]
positions.extend(range(start, start + num_scheduled))
self.positions.gpu[:num_tokens].copy_(
torch.tensor(positions, device=self.device)
)
# Step 3: 准备 block table
self.input_batch.block_table.commit(num_reqs, self.device)
# Step 4: 构建 AttentionMetadata
attn_metadata = self.attn_backend.build_metadata(
seq_lens=self.seq_lens.gpu[:num_reqs],
block_table=self.input_batch.block_table.gpu,
...
)
# Step 5: 计算 logits 索引
logits_indices = self._compute_logits_indices(scheduler_output)
return attn_metadata, logits_indices
_execute_sampler 采样
def _execute_sampler(
self,
logits: torch.Tensor,
scheduler_output: SchedulerOutput,
logits_indices: torch.Tensor,
) -> ModelRunnerOutput:
"""执行采样，生成 token"""
num_reqs = self.input_batch.num_reqs
# Step 1: 选择需要采样的 logits
sampled_logits = logits[logits_indices]
# Step 2: 应用 logits 处理器
# (temperature, top_p, top_k, penalties, etc.)
processed_logits = self._apply_logits_processors(
sampled_logits,
num_reqs,
)
# Step 3: 采样
if self.speculative_config:
# 投机解码：验证 + 采样
sampled_token_ids = self.rejection_sampler(
processed_logits,
draft_token_ids=...,
target_logits=...,
)
else:
# 普通采样
sampled_token_ids = self.sampler(
processed_logits,
sampling_metadata=self.input_batch.sampling_metadata,
)
# Step 4: 计算 logprobs (如果请求)
if self.input_batch.num_logprobs:
logprobs = self._compute_logprobs(...)
else:
logprobs = None
# Step 5: 构建输出
return ModelRunnerOutput(
sampled_token_ids=sampled_token_ids,
logprobs=logprobs,
req_id_to_index={
req_id: i for i, req_id in enumerate(self.input_batch.req_ids)
},
)
完整执行示例

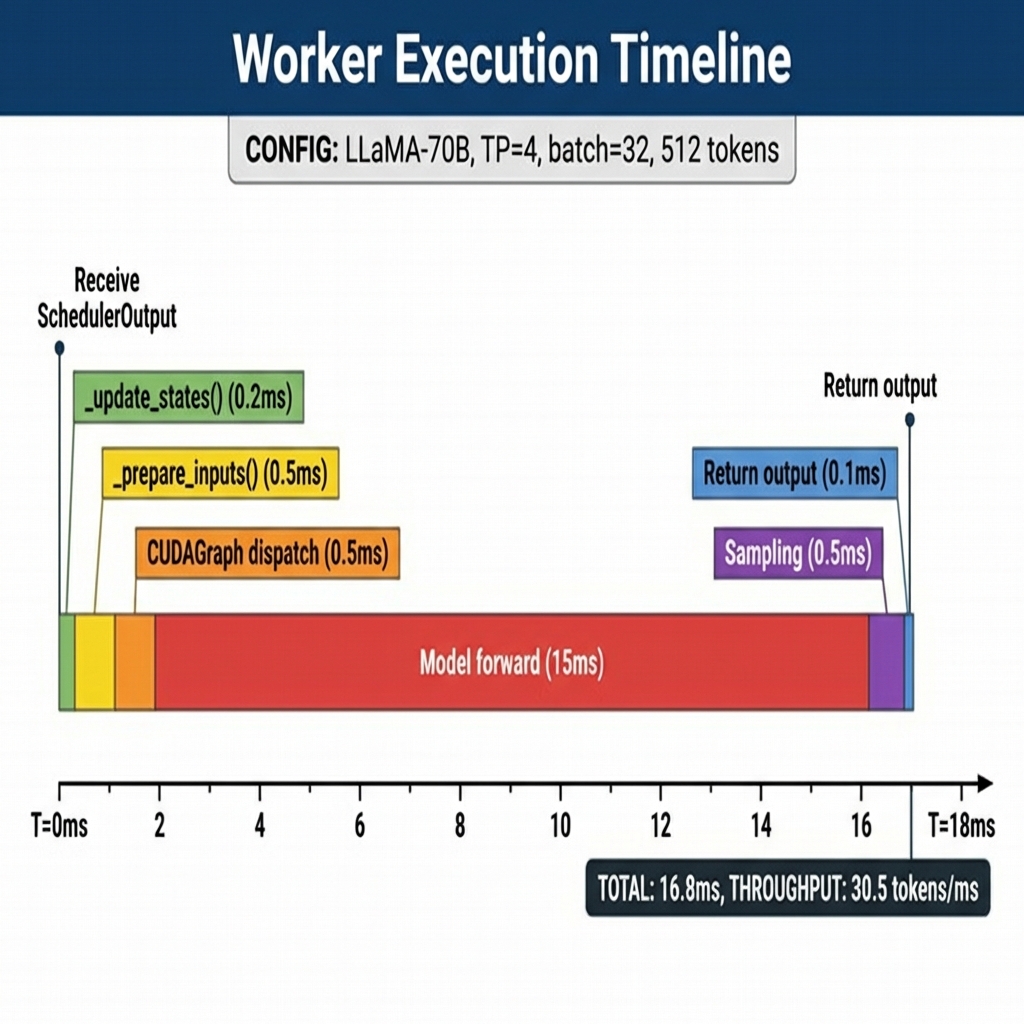

执行时间线图
图4: Worker 执行时间线 - 展示 LLaMA-70B 模型在 TP=4 配置下的各阶段耗时
场景设置
模型: LLaMA-3.1-70B
并行: TP=4 (4 GPU)
批次大小: 32 请求
KV Cache: 16GB per GPU
CUDAGraph: 启用
执行时间线
T=0ms: Engine 发送 SchedulerOutput
┌────────────────────────────────────────────────────────────┐
│ SchedulerOutput: │
│ scheduled_new_reqs: 5 个新请求 │
│ scheduled_cached_reqs: 27 个运行中请求 │
│ num_scheduled_tokens: {A:1, B:1, C:256, ..., Z:1} │
│ total_tokens: 512 │
└────────────────────────────────────────────────────────────┘
T=0.2ms: _update_states()
┌────────────────────────────────────────────────────────────┐
│ 状态更新: │
│ - 移除 2 个已完成请求 │
│ - 添加 5 个新请求到 InputBatch │
│ - 更新 27 个运行中请求的 block_ids │
│ - condense() 压缩批次 │
│ - refresh_metadata() 更新采样元数据 │
└────────────────────────────────────────────────────────────┘
T=0.7ms: _prepare_inputs()
┌────────────────────────────────────────────────────────────┐
│ 输入准备: │
│ input_ids: [512] int32 -> GPU │
│ positions: [512] int64 -> GPU │
│ seq_lens: [32] int32 -> GPU │
│ block_table: [32, 256] int32 -> GPU │
│ 异步复制 │
└────────────────────────────────────────────────────────────┘
T=1.0ms: CUDAGraph 调度
┌────────────────────────────────────────────────────────────┐
│ 批次调度: │
│ num_tokens = 512 │
│ 查找匹配的 CUDAGraph (#8, batch_size=512) │
│ padding_size = 0 (完美匹配) │
└────────────────────────────────────────────────────────────┘
T=1.2ms ~ T=16.2ms: Model Forward
┌────────────────────────────────────────────────────────────┐
│ CUDAGraph #8 执行: │
│ 80 Transformer Layers: │
│ - QKV Projection │
│ - Attention (FlashAttention) │
│ - KV Cache 读写 │
│ - AllReduce (TP=4) │
│ - FFN (MLP) │
│ 输出: logits [512, 128256] │
│ 执行时间: ~15ms │
└────────────────────────────────────────────────────────────┘
T=16.2ms ~ T=16.7ms: Sampling
┌────────────────────────────────────────────────────────────┐
│ 采样: │
│ - 选择 logits_indices (32 个位置) │
│ - 应用 temperature, top_p, top_k │
│ - 应用 frequency/presence/repetition penalties │
│ - 采样 next tokens (greedy=5, random=27) │
│ - 计算 logprobs (8 个请求需要) │
│ 输出: sampled_token_ids [32, 1] │
└────────────────────────────────────────────────────────────┘
T=16.7ms ~ T=16.8ms: 输出构建
┌────────────────────────────────────────────────────────────┐
│ 构建 ModelRunnerOutput: │
│ sampled_token_ids: [[1234], [5678], ...] │
│ logprobs: {A: ..., B: ..., ...} │
│ req_id_to_index: {A:0, B:1, ..., Z:31} │
│ 异步复制到 CPU │
└────────────────────────────────────────────────────────────┘
总时间: ~16.8ms
吞吐量: ~30.5 tokens/ms (512/16.8)
内存分布
GPU 内存 (80GB):
┌─────────────────────────────────────────┐
│ 模型权重 (FP16) │ 35 GB │
├─────────────────────────────────────────┤
│ KV Cache │ 40 GB │
├─────────────────────────────────────────┤
│ Activations │ 3 GB │
├─────────────────────────────────────────┤
│ CUDAGraph │ 1.5 GB │
├─────────────────────────────────────────┤
│ 其他 (buffers, etc) │ 0.5 GB │
└─────────────────────────────────────────┘
性能优化与最佳实践
1. CUDAGraph 优化
# 启用 CUDAGraph
vllm_config.compilation_config.cudagraph_mode = CUDAGraphMode.FULL
# 配置捕获尺寸
vllm_config.compilation_config.cudagraph_capture_sizes = [1, 2, 4, 8, 16, 32, ...]
收益: 减少 kernel 启动开销 (~2ms per step)
2. 异步调度
# 启用异步调度
scheduler_config.async_scheduling = True
# 异步复制 sampled tokens 到 CPU
self.async_output_copy_stream = torch.cuda.Stream()
收益: 重叠 CPU-GPU 传输与计算
3. 持久化批次优化
# 增量更新而非全量重建
def _update_states(self, scheduler_output):
# 只更新变化的请求
for req_id in scheduler_output.finished_req_ids:
self.input_batch.remove_request(req_id)
# 压缩以保持连续性
self.input_batch.condense()
收益: ~40% 迭代时间减少
4. Sleep Mode
# 启用休眠模式
model_config.enable_sleep_mode = True
# 休眠 (释放权重内存)
worker.sleep(level=1) # 只释放权重
worker.sleep(level=2) # 释放所有
# 唤醒
worker.wake_up(tags=["weights", "kv_cache"])
收益: 多模型共享 GPU 内存
5. 内存池管理
# 使用 CuMemAllocator 进行细粒度内存管理
from vllm.device_allocator.cumem import CuMemAllocator
allocator = CuMemAllocator.get_instance()
with allocator.use_memory_pool(tag="weights"):
self.model_runner.load_model()
关键代码位置
| 功能 | 文件 | 行数 |
|------|------|------|
| Worker 基类 | worker_base.py | 373 |
| GPU Worker | gpu_worker.py | 966 |
| GPU Model Runner | gpu_model_runner.py | 6067 |
| Input Batch | gpu_input_batch.py | 1031 |
| Block Table | block_table.py | ~500 |
| Sampler | v1/sample/sampler.py | ~300 |
总结
vLLM 的 Worker 架构是一个高度优化的模型执行系统：
- 分层设计：WorkerBase -> Worker -> GPUModelRunner
- 持久化批次：增量更新，减少 CPU-GPU 通信
- CUDAGraph：减少 kernel 启动开销
- 异步执行：重叠计算和传输
- 灵活扩展：支持多种硬件 (GPU/CPU/XPU)
理解 Worker 架构对于优化 vLLM 性能和进行自定义开发至关重要。
相关文件
| 文件路径 | 说明 | 行数 |
|----------|------|------|
| vllm/v1/worker/worker_base.py | Worker 抽象基类 | 373 |
| vllm/v1/worker/gpu_worker.py | GPU Worker 实现 | 966 |
| vllm/v1/worker/gpu_model_runner.py | GPU 模型执行器 | 6067 |
| vllm/v1/worker/gpu_input_batch.py | 持久化批次实现 | 1031 |
| vllm/v1/worker/block_table.py | 块表管理 | ~500 |
| vllm/v1/sample/sampler.py | Token 采样器 | ~300 |
